Table Saw Sled

Hello! The table saw sled is completed; but man is it ugly. It’s made from scrap wood and I could not create the nice curved profile that was in the SketchUp drawing, as I don’t have a band saw or scroll saw, and no spindle sander. I will glue on a veneer on the top run my router over the edges with a round-over bit.

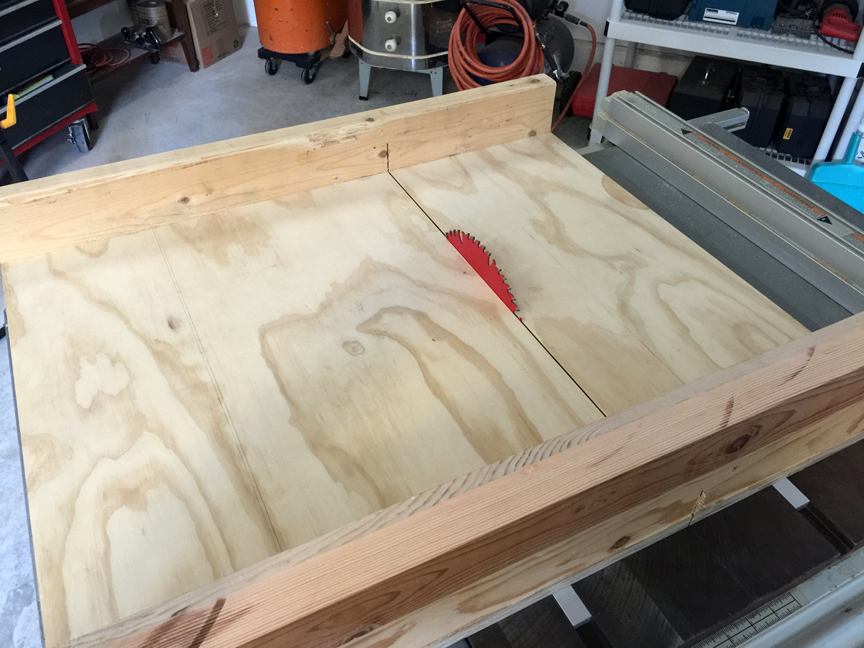

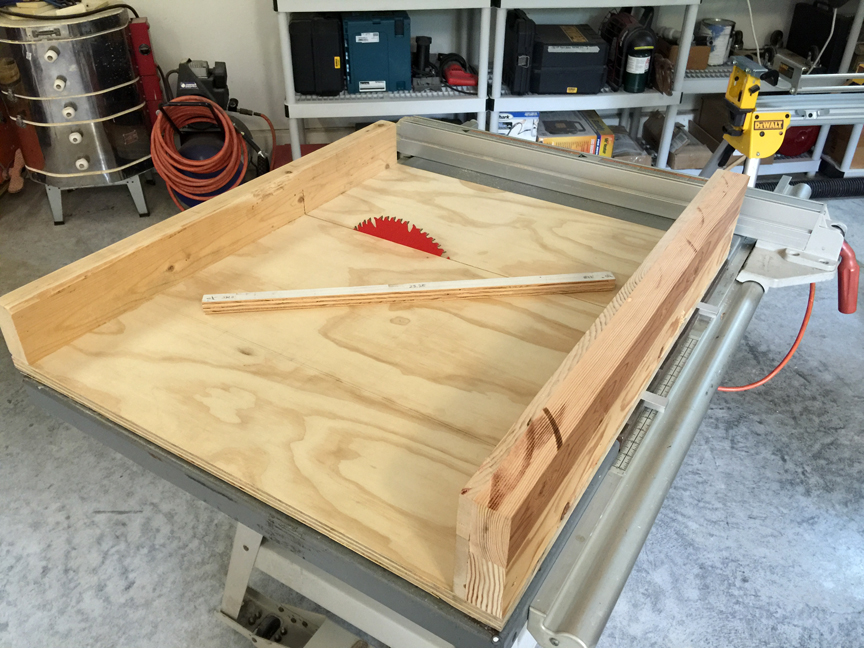

table saw sled

Table Saw Sled

table saw sled

Close Up

However, ugly as it is, it’s accurate! I used the truing method found online at: Five Cuts to a Perfect Table Saw Sled My “A” cut was .6135″; “B” cut was .6190″. After calculating the math it gave my an error of .0018″ over a 23.09″ length cut. Not perfect, but I’ll take it! Now I can use it to square up the ends of the massive workbench legs I am constructing. Fun!

table saw sled

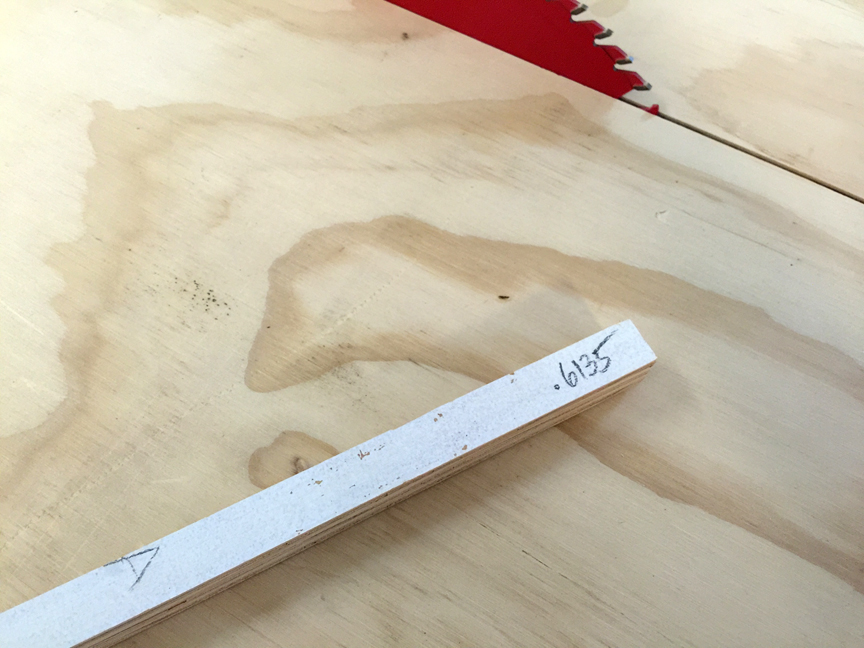

A cut dimension.

table saw sled

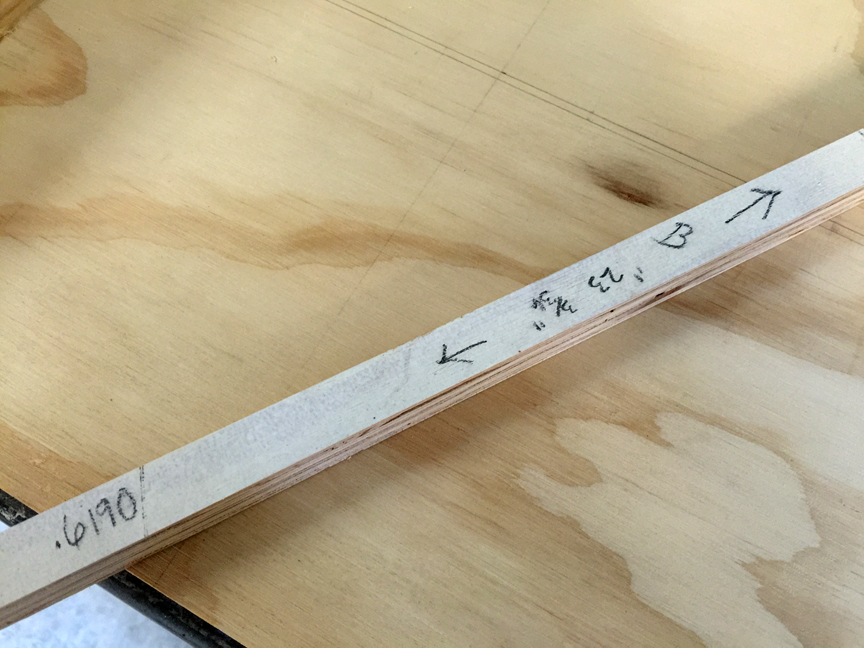

B cut dimension
